Logic: Deductive and Inductive

The method of Difference may be applied either (1) by observation, on finding two instances (distinct assemblages of conditions) differing only in one phenomenon together with its antecedent or consequent; or (2) by experiment, and then, either (a) by preparing two instances that may be compared side by side, or (b) by taking certain conditions, and then introducing (or subtracting) some agent, supposed to be the cause, to see what happens: in the latter case the "two instances" are the same assemblage of conditions considered before and, again, after, the introduction of the agent. As an example of (a) there is an experiment to show that radium gives off heat: take two glass tubes, in one put some chloride of radium, in both thermometers, and close them with cotton-wool. Soon the thermometer in the tube along with radium reads 54° F. higher than the other one. The tube without the radium, whose temperature remains unaltered, is called the "control" experiment. Most experiments are of the type (b); and since the Canon, which describes two co-existing instances, does not readily apply to this type, an alternative version may be offered: Any agent whose introduction into known circumstances (without further change) is immediately followed by a definite phenomenon is a condition of the occurrence of that phenomenon.

The words into known circumstances are necessary to emphasise what is required by this Method, namely, that the two instances differ in only one thing; for this cannot be ascertained unless all the other conditions are known; and this further implies that they have been prepared. It is, therefore, not true (as Sigwart asserts) that this method determines only one condition of a phenomenon, and that it is then necessary to inquire into the other conditions. If they were not known they must be investigated; but then the experiment would not have been made upon this method. Practically, experiments have to be made in all degrees of imperfection, and the less perfect they are, that is, the less the circumstances are known beforehand, the more remains to be done. A common imperfection is delay, or the occurrence of a latent period between the introduction of an agent and the manifestation of its effects; it cannot then be the unconditional cause; though it may be an indispensable remote condition of whatever change occurs. If, feeling out of sorts, you take a drug and some time afterwards feel better, it is not clear on this ground alone that the drug was the cause of recovery, for other curative processes may have been active meanwhile—food, or sleep, or exercise.

Any book of Physics or of Chemistry will furnish scores of examples of the method of Difference: such as Galileo's experiment to show that air has weight, by first weighing a vessel filled with ordinary air, and then filling it with condensed air and weighing it again; when the increased weight can only be due to the greater quantity of air contained. The melting-point of solids is determined by heating them until they do melt (as silver at 1000° C., gold at 1250°, platinum at 2000°); for the only difference between bodies at the time of melting and just before is the addition of so much heat. Similarly with the boiling point of liquids. That the transmission of sound depends upon the continuity of an elastic ponderable medium, is proved by letting a clock strike in a vacuum (under a glass from which the air has been withdrawn by an air pump), and standing upon a non-elastic pedestal: when the clock be seen to strike, but makes only such a faint sound as may be due to the imperfections of the vacuum and the pedestal.

The experiments by which the chemical analysis or synthesis of various forms of matter is demonstrated are simple or compound applications of this method of Difference, together with the quantitative mark of causation (that cause and effect are equal); since the bodies resulting from an analysis are equal in weight to the body analysed, and the body resulting from a synthesis is equal in weight to the bodies synthesised. That an electric current resolves water into oxygen and hydrogen may be proved by inserting the poles of a galvanic battery in a vessel of water; when this one change is followed by another, the rise of bubbles from each pole and the very gradual decrease of the water. If the bubbles are caught in receivers placed over them, it can be shown that the joint weight of the two bodies of gas thus formed is equal to the weight of the water that has disappeared; and that the gases are respectively oxygen and hydrogen may then be shown by proving that they have the properties of those gases according to further experiments by the method of Difference; as (e.g.) that one of them is oxygen because it supports combustion, etc.

When water was first decomposed by the electric current, there appeared not only oxygen and hydrogen, but also an acid and an alkali. These products were afterwards traced to impurities of the water and of the operator's hands. Mill observes that in any experiment the effect, or part of it, may be due, not to the supposed agent, but to the means employed in introducing it. We should know not only the other conditions of an experiment, but that the agent or change introduced is nothing else than what it is supposed to be.

In the more complex sciences the method of Difference is less easily applicable, because of the greater difficulty of being sure that only one circumstance at a time has altered; still, it is frequently used. Thus, if by dividing a certain nerve certain muscles are paralysed, it is shown that normally that nerve controls those muscles. That the sense of smell in flies and cockroaches is connected with the antennae has been shown by cutting them off: whereupon the insects can no longer find carrion. In his work on Earthworms, Darwin shows that, though sensitive to mechanical tremors, they are deaf (or, at least, not sensitive to sonorous vibrations transmitted through the air), by the following experiment. He placed a pot containing a worm that had come to the surface, as usual at night, upon a table, whilst close by a piano was violently played; but the worm took no notice of the noise. He then placed the pot upon the piano, whilst it was being played, when the worm, probably feeling mechanical vibrations, hastily slid back into its burrow.

When, instead of altering one circumstance in an instance (which we have done our best not otherwise to disturb) and then watching what follows, we try to find two ready-made instances of a phenomenon, which only differ in one other circumstance, it is, of course, still more difficult to be sure that there is only one other circumstance in which they differ. It may be worth while, however, to look for such instances. Thus, that the temperature of ocean currents influences the climate of the shores they wash, seems to be shown by the fact that the average temperature of Newfoundland is lower than that of the Norwegian coast some 15° farther north. Both regions have great continents at their back; and as the mountains of Norway are higher and capped with perennial snow, we might expect a colder climate there: but the shore of Norway is visited by the Gulf Stream, whilst the shore of Newfoundland is traversed by a cold current from Greenland. Again, when in 1841 the railway from Rouen to Paris was being built, gangs of English and gangs of French workmen were employed upon it, and the English got through about one-third more work per man than the French. It was suspected that this difference was due to one other difference, namely, that the English fed better, preferring beef to thin soup. Now, logically, it might have been objected that the evidence was unsatisfactory, seeing that the men differed in other things besides diet—in 'race' (say), which explains so much and so easily. But the Frenchmen, having been induced to try the same diet as the English, were, in a few days, able to do as much work: so that the "two instances" were better than they looked. It often happens that evidence, though logically questionable, is good when used by experts, whose familiarity with the subject makes it good.

§ 4. The Canon Of Concomitant Variations.

Whatever phenomenon varies in any manner whenever another phenomenon (consequent or antecedent) varies in some particular manner [no other change having concurred] is either the cause or effect of that phenomenon [or is connected with it through some fact of causation].

This is not an entirely fresh method, but may be regarded as a special case either of Agreement or of Difference, to prove the cause or effect, not of a phenomenon as a whole, but of some increment of it (positive or negative). There are certain forces, such as gravitation, heat, friction, that can never be eliminated altogether, and therefore can only be studied in their degrees. To such phenomena the method of Difference cannot be applied, because there are no negative instances. But we may obtain negative instances of a given quantity of such a phenomenon (say, heat), and may apply the method of Difference to that quantity. Thus, if the heat of a body increases 10 degrees, from 60 to 70, the former temperature of 60 was a negative instance in respect of those 10 degrees; and if only one other circumstance (say, friction) has altered at the same time, that circumstance (if an antecedent) is the cause. Accordingly, if in the above Canon we insert, after 'particular manner,' "[no other change having concurred,]" it is a statement of the method of Difference as applicable to the increment of a phenomenon, instead of to the phenomenon as a whole; and we may then omit the last clause—"[or is connected, etc.]." For these words are inserted to provide for the case of co-effects of a common cause (such as the flash and report of a gun); but if no other change (such as the discharge of a gun) has concurred with the variations of two phenomena, there cannot have been a common cause, and they are therefore cause and effect.

If, on the other hand, we omit the clause "[no other change having concurred,]" the Canon is a statement of the method of Agreement as applicable to the increment of a phenomenon instead of to the phenomenon as a whole; and it is then subject to the imperfections of that method: that is to say, it leaves open the possibilities, that an inquirer may overlook a plurality of causes; or may mistake a connection of two phenomena, which (like the flash and report of a gun) are co-effects of a common cause, for a direct relation of cause and effect.

It may occur to the reader that we ought also to distinguish Qualitative and Quantitative Variations as two orders of phenomena to which the present method is applicable. But, in fact, Qualitative Variations may be adequately dealt with by the foregoing methods of Agreement, Double Agreement, and Difference; because a change of quality or property entirely gets rid of the former phase of that quality, or substitutes one for another; as when the ptarmigan changes from brown to white in winter, or as when a stag grows and sheds its antlers with the course of the seasons. The peculiar use of the method of Variations, however, is to formulate the conditions of proof in respect of those causes or effects which cannot be entirely got rid of, but can be obtained only in greater or less amount; and such phenomena are or course, quantitative.

Even when there are two parallel series of phenomena the one quantitative and the other qualitative—like the rate of air-vibration and the pitch of sound, or the rate of ether-vibration and the colour-series of the spectrum—the method of Variations is not applicable. For (1) two such series cannot be said to vary together, since the qualitative variations are heterogeneous: 512: 576 is a definite ratio; but the corresponding notes, C, D, in the treble clef, present only a difference. Hence (2) the correspondence of each note with each number is a distinct fact. Each octave even is a distinct fact; there is a difference between C 64 and C 128 that could never have been anticipated without the appropriate experience. There is, therefore, no such law of these parallel series as there is for temperature and change of volume (say) in mercury. Similar remarks apply to the physical and sensitive light-series.

We may illustrate the two cases of the method thus (putting a dash against any letter, A' or p', to signify an increase or decrease of the phenomenon the letter stands for): Agreement in Variations (other changes being admissible)—

Here the accompanying phenomena (B C q r, D E s t, F G u v) change from time to time, and the one thing in which the instances agree throughout is that any increase of A (A' or A'') is followed or accompanied by an increase of p (p' or p''): whence it is argued that A is the cause of p, according to Prop. III. (a) (ch. xv. § 7). Still, it is supposable that, in the second instance, D or E may be the cause of the increment of p; and that, in the third instance, F or G may be its cause: though the probability of such vicarious causation decreases rapidly with the increase of instances in which A and p vary together. And, since an actual investigation of this type must rely on observation, it is further possible that some undiscovered cause, X, is the real determinant of both A and p and of their concomitant variations.

Professor Ferri, in his Criminal Sociology, observes: "I have shown that in France there is a manifest correspondence of increase and decrease between the number of homicides, assaults and malicious wounding, and the more or less abundant vintage, especially in the years of extraordinary variations, whether of failure of the vintage (1853-5, 1859, 1867, 1873, 1878-80), attended by a remarkable diminution of crime (assaults and wounding), or of abundant vintages (1850, 1856-8, 1862-3, 1865, 1868, 1874-5), attended by an increase of crime" (p. 117, Eng. trans.). And earlier he had remarked that such crimes also "in their oscillations from month to month display a characteristic increase during the vintage periods, from June to December, notwithstanding the constant diminution of other offences" (p. 77). This is necessarily an appeal to the canon of Concomitant Variations, because France is never without her annual vintage, nor yet without her annual statistics of crime. Still, it is an argument whose cogency is only that of Agreement, showing that probably the abuse of the vintage is a cause of crimes of violence, but leaving open the supposition, that some other circumstance or circumstances, arising or varying from year to year, may determine the increase or decrease of crime; or that there is some unconsidered agent which affects both the vintage and crimes of violence. French sunshine, it might be urged, whilst it matures the generous grape, also excites a morbid fermentation in the human mind.

Difference in Variations may be symbolically represented thus (no other change having concurred):

Here the accompanying phenomena are always the same B/q; and the only point in which the successive instances differ is in the increments of A (A', A'') followed by corresponding increments of p (p', p''): hence the increment of A is the cause of the increment of p.

For examples of the application of this method, the reader should refer to some work of exact science. He will find in Deschanel's Natural Philosophy, c. 32, an account of some experiments by which the connection between heat and mechanical work has been established. It is there shown that "whenever work is performed by the agency of heat" [as in driving an engine], "an amount of heat disappears equivalent to the work performed; and whenever mechanical work is spent in generating heat" [as in rubbing two sticks together], "the heat generated is equivalent to the work thus spent." And an experiment of Joule's is described, which consisted in fixing a rod with paddles in a vessel of water, and making it revolve and agitate the water by means of a string wound round the rod, passed over a pulley and attached to a weight that was allowed to fall. The descent of the weight was measured by a graduated rule, and the rise of the water's temperature by a thermometer. "It was found that the heat communicated to the water by the agitation amounted to one pound-degree Fahrenheit for every 772 foot-pounds of work" expended by the falling weight. As no other material change seems to take place during such an experiment, it shows that the progressive expenditure of mechanical energy is the cause of the progressive heating of the water.

The thermometer itself illustrates this method. It has been found that the application of heat to mercury expands it according to a law; and hence the volume of the mercury, measured by a graduated index, is used to indicate the temperature of the air, water, animal body, etc., in which the thermometer is immersed, or with which it is brought into contact. In such cases, if no other change has taken place, the heat of the air, water, or body is the cause of the rise of the mercury in its tube. If some other substance (say spirit) be substituted for mercury in constructing a thermometer, it serves the same purpose, provided the index be graduated according to the law of the expansion of that substance by heat, as experimentally determined.

Instances of phenomena that do not vary together indicate the exclusion of a supposed cause (by Prop. III (c)). The stature of the human race has been supposed to depend on temperature; but there is no correspondence. The "not varying together," however, must not be confused with "varying inversely," which when regular indicates a true concomitance. It is often a matter of convenience whether we regard concomitant phenomena as varying directly or inversely. It is usual to say—'the greater the friction the less the speed'; but it is really more intelligible to say—'the greater the friction the more rapidly molar is converted into molecular motion.'

The Graphic Method exhibits Concomitant Variations to the eye, and is extensively used in physical and statistical inquiries. Along a horizontal line (the abscissa) is measured one of the conditions (or agents) with which the inquiry is concerned, called the Variable; and along perpendiculars (ordinates) is measured some phenomenon to be compared with it, called the Variant.

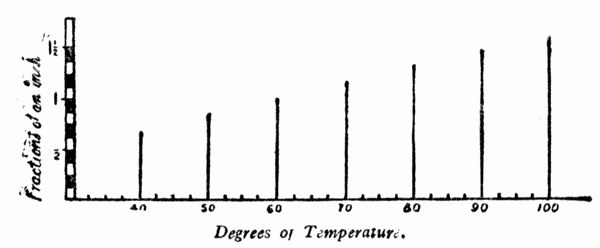

Thus, the expansion of a liquid by heat may be represented by measuring degrees of temperature along the horizontal, and the expansion of a column of the liquids in units of length along the perpendicular.

Fig. 9.

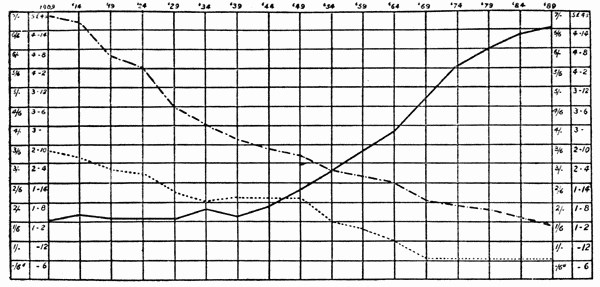

In the next diagram (Fig. 10), reduced from one given by Mr. C.H. Denyer in an article on the Price of Tea (Economic Journal, No. 9), the condition measured horizontally is Time; and, vertically, three variants are measured simultaneously, so that their relations to one another from time to time may be seen at a glance. From this it is evident that, as the duty on tea falls, the price of tea falls, whilst the consumption of tea rises; and, in spite of some irregularity of correspondence in the courses of the three phenomena, their general causal connection can hardly be mistaken. However, the causal connection may also be inferred by general reasoning; the statistical Induction can be confirmed by a Deduction; thus illustrating the combined method of proof to be discussed in the next chapter. Without such confirmation the proof by Concomitant Variations would not be complete; because, from the complexity of the circumstances, social statistics can only yield evidence according to the method of Agreement in Variations. For, besides the agents that are measured, there may always be some other important influence at work. During the last fifty years, for example, crime has decreased whilst education has increased: true, but at the same time wages have risen and many other things have happened.

Diagram showing (1)– · – · the average Price of Tea (in bond), but with duty added per lb.; (2)· · · · · · the rate of Duty; (3)– the consumption per head, from 1809 to 1889.

Fig. 10.

One horizontal space = 5 years. One vertical space = 6 pence, or 6 ounces.

It will be noticed that in the diagram the three lines, especially those of Price and Consumption (which may be considered natural resultants, in contrast with the arbitrary fixation of a Tax), do not depart widely from regular curves; and accordingly, assuming the causes at work to vary continuously during the intervals between points of measurement, curves may be substituted. In fact, a curve often represents the course of a phenomenon more truthfully than can be done by a line that zigzags along the exact measurements; because it is less influenced by temporary and extraordinary causes that may obscure the operation of those that are being investigated. On the other hand, the abrupt deviations of a punctilious zigzag may have their own logical value, as will appear in the next section.

In working with the Method of Variations one must allow for the occurrence in a series of 'critical points,' at which sudden and sometimes heterogeneous changes may take place. Every substance exists at different temperatures in three states, gaseous, liquid, solid; and when the change takes place, from one state to another, the series of variations is broken. Water, e.g., follows the general law that cooling is accompanied by decrease of volume between 212° and 39° F.: but above 212°, undergoes a sudden expansion in becoming a gas; and below 39° begins to expand, until at 32° the expansion is considerable on its becoming solid. This illustrates a common experience that concomitant variations are most regular in the 'median range,' and are apt to become irregular at the extremities of the series, where new conditions begin to operate.

The Canon of Variations, again, deals not with sudden irruptions of a cause, force or agent, but with some increase or decrease of an agent already present, and a corresponding increase or decrease of some other phenomenon—say an increase of tax and a rise of price. But there are cases in which the energy of a cause is not immediately discharged and dissipated. Whilst a tax of 6d. per lb. on tea raises the price per lb. by about 6d., however long it lasts, the continuous application of friction to a body may gradually raise its temperature to the point of combustion; because heat is received faster than it is radiated, and therefore accumulates. Such cases are treated by Mill under the title of 'progressive effects' (Logic: B. III., c. 15): he gives as an example of it the acceleration of falling bodies. The storage of effects is a fact of the utmost importance in all departments of nature, and is especially interesting in Biology and Sociology, where it is met with as heredity, experience, tradition. Evolution of species of plants and animals would (so far as we know) be impossible, if the changes (however caused) that adapt some individuals better than others to the conditions of life were not inherited by, and accumulated in, their posterity. The eyes in the peacock's tail are supposed to have reached their present perfection gradually, through various stages that may be illustrated by the ocelli in the wings of the Argus pheasant and other genera of Phasianidæ. Similarly the progress of societies would be impossible without tradition, whereby the improvements made in any generation may be passed on to the next, and the experience of mankind may be gradually accumulated in various forms of culture. The earliest remains of culture are flint implements and weapons; in which we can trace the effect of tradition in the lives of our remote forefathers, as they slowly through thousands of years learnt to improve the chipping of flints, until the first rudely shaped lumps gave place to works of unmistakable design, and these to the beautiful weapons contemporary with the Bronze Age.
