With this apparatus Boyle carried out a long series of experiments. He could reduce the pressure in the large receiver to somewhat less than that corresponding to an inch of mercury, or about a foot of water. Squeezing a bladder so as to expel nearly all the air, tying the neck, and then introducing it into the receiver, he found, on working the pump, that the bladder swelled so that at length it became completely distended. In order to account for this great expansibility, Boyle pictured the constitution of the air in the following way. He supposed the air to consist of separate particles, each resembling a spiral spring, which became tightly wound when exposed to great pressure, but which expanded so as to occupy a larger circle when the pressure was diminished. Each of these little spirals he supposed to rotate about a diameter so as to exclude every other body from the sphere in which it moved. Increasing the length of the diameter tenfold would increase the volume of one of these spheres, and therefore the volume of the gas, a thousandfold. Possibly this was only intended as a mental illustration, exhibiting a mechanism by which very great expansion might conceivably be produced, and scarcely pretending to be considered a theory of the constitution of the air. Boyle's first idea seems to have been derived from a lock of wool in which the elasticity of each fibre caused the lock to expand after it had been compressed in the hand. In another passage he speaks of the air as consisting of a number of bodies capable of striking against a surface exposed to them. He demonstrated the weight of the air by placing a delicate balance within the receiver, suspending from one arm a bladder half filled with water, and balancing it with brass weights. On exhausting the air, the bladder preponderated, and, by repeating the experiment with additional weights on the other arm until a balance was effected in the exhausted receiver, he determined the amount of the preponderance. In another experiment he compressed air in a bladder by tying a pack-thread round it, balanced it from one arm of his balance in the open air; then, pricking the bladder so as to relieve the pressure, he found that with the escape of the compressed air the weight diminished.

One of the most important of his experiments with the air-pump was the following. He placed within the receiver the cistern of a mercurial barometer, the tube of which was made to pass through the central hole in the brass plate, from which the stopper had been removed. The space around the tube was filled up with cement, and the receiver exhausted. At each stroke of the pump the mercury in the barometer tube descended, but through successively diminishing distances, until at length it stood only an inch above the mercury in the cistern. The experiment was then repeated with a tube four feet long and filled with water. This constituted the nineteenth experiment referred to later on. A great many strokes of the pump had to be made before the water began to descend. At length it fell till the surface in the tube stood only about a foot above that in the tank. Placing vessels of ordinary spring-water and of distilled rain-water in the receiver, he found that, after the exhaustion had reached a certain stage, bubbles of gas were copiously evolved from the spring-water, but not from the distilled water. On another occasion he caused warm water to boil by a few strokes of the pump; and, continuing the exhaustion, the water was made to boil at intervals until it became only lukewarm. The experiment was repeated with several volatile liquids. He also noticed the cloud formed in the receiver when the air was allowed rapidly to expand; but the mechanical theory of heat had not then made sufficient progress to enable him to account for the condensation by the loss of heat due to the work done by the expanding air. The very minute accuracy of his observations is conspicuous in the descriptions of most of his experiments. That the air is the usual medium for the conveyance of sound was shown by suspending a watch by a linen thread within the receiver. On exhausting the air, the ticking of the watch ceased to be heard. A pretty experiment consisted in placing a bottle of a certain fuming liquid within the receiver; on exhausting the air, the fumes fell over the neck of the bottle and poured over the stand on which it was placed like a stream of water. Another experiment, the thirty-second, is worthy of mention on account of the use to which it was afterwards applied in the controversy respecting the cause of suction. The receiver, having been exhausted, was removed from the cylinder, the stop-cock being turned off, and a small brass valve, to which a scale-pan was attached, was placed just under the aperture of the tube below the stop-cock. On turning the latter, the stream of air raised the valve, closing the aperture, and the atmospheric pressure supported it until a considerable weight had been placed in the scale-pan. Because the receiver could not be exhausted so thoroughly as the pump-cylinder, Boyle attempted to measure the pressure of the air by determining what weight could be supported by the piston. He found first that a weight of twenty-eight pounds suspended directly from the piston was sufficient to overcome friction when air was admitted above the piston. When the access of air to the top of the piston was prevented, more than one hundred pounds additional weight was required to draw down the piston. The diameter of the cylinder was about three inches.

Boyle's style of reasoning is well illustrated by the following from his paper on "The Spring of the Air: " —

"In the next place, these experiments may teach us what to judge of the vulgar axiom received for so many ages as an undoubted truth in the peripatetick schools, that Nature abhors and flieth a vacuum, and that to such a degree that no human power (to go no higher) is able to make one in the universe; wherein heaven and earth would change places, and all its other bodies rather act contrary to their own nature than suffer it… It will not easily, then, be intelligibly made out how hatred or aversation, which is a passion of the soul, can either for a vacuum or any other object be supposed to be in water, or such like inanimate body, which cannot be presumed to know when a vacuum would ensue, if they did not bestir themselves to prevent it; nor to be so generous as to act contrary to what is most conducive to their own particular preservation for the public good of the universe. As much, then, of intelligible and probable truth as is contained in this metaphorical expression seems to amount but to this – that by the wise Author of nature (who is justly said to have made all things in number, weight, and measure) the universe, and the parts of it, are so contrived that it is hard to make a vacuum in it, as if they studiously conspired to prevent it. And how far this itself may be granted deserves to be further considered.

"For, in the next place, our experiments seem to teach that the supposed aversation of Nature to a vacuum is but accidental, or in consequence, partly of the weight and fluidity, or, at least, fluxility of the bodies here below; and partly, and perhaps principally, of the air, whose restless endeavour to expand itself every way makes it either rush in itself or compel the interposed bodies into all spaces where it finds no greater resistance than it can surmount. And that in those motions which are made ob fugam vacui (as the common phrase is), bodies act without such generosity and consideration as is wont to be ascribed to them, is apparent enough in our thirty-second experiment, where the torrent of air, that seemed to strive to get into the emptied receiver, did plainly prevent its own design, by so impelling the valve as to make it shut the only orifice the air was to get [in] at. And if afterwards either Nature or the internal air had a design the external air should be attracted, they seemed to prosecute it very unwisely by continuing to suck the valve so strongly, when they found that by that suction the valve itself could not be drawn in; whereas, by forbearing to suck, the valve would, by its own weight, have fallen down and suffered the excluded air to return freely, and to fill again the exhausted vessel…

"And as for the care of the public good of the universe ascribed to dead and stupid bodies, we shall only demand why, in our nineteenth experiment, upon the exsuction of the ambient air, the water deserted the upper half of the glass tube, and did not ascend to fill it up till the external air was let in upon it. Whereas, by its easy and sudden rejoining that upper part of the tube, it appeared both that there was then much space devoid of air, and that the water might, with small or no resistance, have ascended into it, if it could have done so without the impulsion of the readmitted air; which, it seems, was necessary to mind the water of its formerly neglected duty to the universe."

Boyle then goes on to explain the phenomena correctly by the pressure of the air. Elsewhere he accounts for the diminished pressure on the top of a mountain by the diminished weight of the superincumbent column of air.

The treatise on "The Spring of the Air" met with much opposition, and Boyle considered it necessary to defend his doctrine against the objections of Franciscus Linus and Hobbes. In this defence he described the experiment in connection with which he is most generally remembered. Linus had admitted that the air might possess a certain small amount of elasticity, but maintained that the force with which mercury rose in a barometer tube was due mainly to a totally different action, as though a string were pulling upon it from above. This was his funicular hypothesis. Boyle undertook to show that the pressure of the air might be made to support a much higher column of mercury than that of the barometer. To this end he took a glass tube several feet in length, and bent so as to form two vertical legs connected below. The shorter leg was little more than a foot long, and hermetically closed at the top. The longer leg was nearly eight feet in length, and open at the top. The tube was suspended by strings upon the staircase, the bend at the bottom pressing lightly against the bottom of a box placed to receive the mercury employed in case of accident. Each leg of the tube was provided with a paper scale. Mercury was poured in at the open end, the tube being tilted so as to allow some of the air to escape from the shorter limb until the mercury stood at the same level in both legs when the tube was vertical. The length of the closed tube occupied by the air was then just twelve inches. The height of the barometer was about 29-1/8 inches. Mercury was gently poured into the open limb by one operator, while another watched its height in the closed limb. The results of the experiments are given in the table on the opposite page.

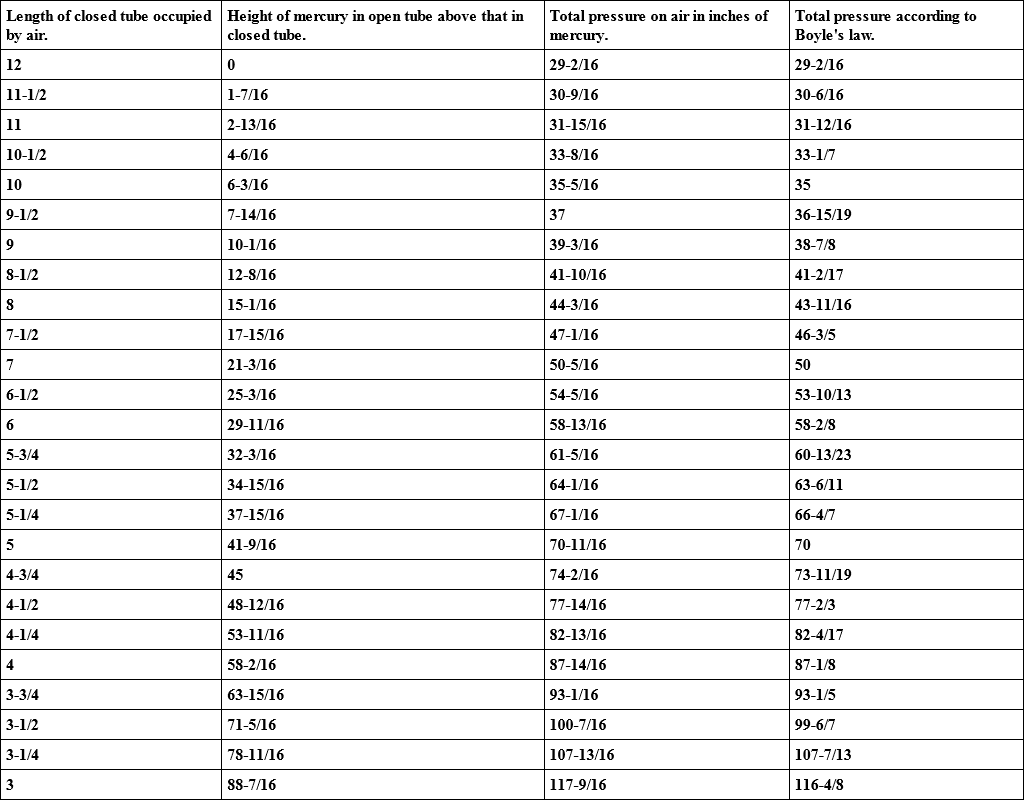

In this table the third column gives the result of adding to the second column the height of the barometer, which expresses in inches of mercury the pressure of the air on the free surface of the mercury in the longer limb. The fourth column gives the total pressure, in inches of mercury, on the hypothesis that the pressure of the air varies inversely as the volume. The agreement between the third and fourth columns is very close, considering the roughness of the experiment and that no trouble appears to have been taken to calibrate the shorter limb of the tube, and justified Boyle in concluding that the hypothesis referred to expresses the relation between the volume and pressure of a given mass of air.

To extend the investigation so as to include expansion below atmospheric pressure, a different apparatus was employed. It consisted of a glass tube about six feet in length, closed at the lower end and filled with mercury. Into this bath of mercury was plunged a length of quill tube, and the upper end was sealed with wax. When the wax and air in the tube had cooled, a hot pin was passed through the wax, making a small orifice by which the amount of air in the tube was adjusted so as to occupy exactly one inch of its length as measured by a paper scale attached thereto, after again sealing the wax. The quill tube was then raised, and the height of the surface of the mercury in the tube above that in the bath noticed, together with the length of the tube occupied by the air. The difference between the height of the barometer and the height of the mercury in the tube above that in the bath gave the pressure on the imprisoned air in inches of mercury. The result showed that the volume varied very nearly in the inverse ratio of the pressure. A certain amount of air, however, clung to the sides of the quill tube when immersed in the mercury, and no care was taken to remove it by boiling the mercury or otherwise; in consequence of this, as the mercury descended, this air escaped and joined the rest of the air in the tube. This made the pressure rather greater than it should have been towards the end of the experiment, and when the tube was again pressed down into the bath it was found that, when the surfaces of the mercury within and without the tube were at the same level, the air occupied nearly 1-1/8 inch instead of one inch of the tube. These experiments first established the truth of the great law known as "Boyle's law," which states that the volume of a given mass of a perfect gas varies inversely as the pressure to which it is exposed.

Another experiment, to show that the pressure of the air was the cause of suction, Boyle succeeded in carrying out at a later date. Two discs of marble were carefully polished, so that when a little spirit of turpentine was placed between them the lower disc, with a pound weight suspended from it, was supported by the upper one. The apparatus was introduced into the air-pump, and a considerable amount of shaking proved insufficient to separate the discs. After sixteen strokes of the pump, on opening the communication between the receiver and cylinder, when no mechanical vibration occurred, the discs separated.

Upon the Restoration in 1660, the Earl of Clarendon, who was Lord Chancellor of England, endeavoured to persuade Boyle to enter holy orders, urging the interest of the Church as the chief motive for the proceeding. This made some impression upon Boyle, but he declined for two reasons – first, because he thought that he would have a greater influence for good if he had no share in the patrimony of the Church; and next, because he had never felt "an inward motion to it by the Holy Ghost."

In 1649 an association was incorporated by Parliament, to be called "the President and Society for the Propagation of the Gospel in New England," whose object should be "to receive and dispose of moneys in such manner as shall best and principally conduce to the preaching and propagating the gospel among the natives, and for the maintenance of schools and nurseries of learning for the education of the children of the natives; for which purpose a general collection was appointed to be made in and through all the counties, cities, towns, and parishes of England and Wales, for a charitable contribution, to be as the foundation of so pious and great an undertaking." The society was revived by special charter in 1661, and Boyle was appointed president, an office he continued to hold until shortly before his death. The society afterwards enlarged its sphere of operations, and became the Society for the Propagation of the Gospel in Foreign Parts.

In the same year (1661) Boyle published "Some Considerations on the Usefulness of Experimental Natural Philosophy," etc., and in 1663 an extremely interesting paper on "Experiments and Considerations touching Colours." In the course of this paper he describes some very beautiful experiments with a tincture of Lignum nephriticum, wherein the dichroism of the extract is made apparent. Boyle found that by transmitted light it appeared of a bright golden colour, but when viewed from the side from which it was illuminated the light emitted was sky blue, and in some cases bright green. By arranging experiments so that some parts of the liquid were seen by the transmitted light and some by the scattered light, very beautiful effects were produced. Boyle endeavoured to learn something of the nature of colours by projecting spectra on differently coloured papers, and observing the appearance of the papers when illuminated by the several spectral rays. He also passed sunlight, concentrated by a lens, through plates of differently coloured glass superposed, allowing the light to fall on a white paper screen, and observing the tint of the light which passed through each combination. But the most interesting of these experiments was the actual mixture of light of different colours by forming two spectra, one by means of a fixed prism, the other by a prism held in the hand, and superposing the latter on the former so that different colours were made to coincide. This experiment was repeated in a modified form, nearly two hundred years later, by Helmholtz, who found that the mixture of blue and yellow lights produced pink. Unfortunately, Boyle's spectra were far from pure, for, the source of light being of considerable dimensions, the different colours overlapped one another, as in Newton's experiments, and in consequence some of his conclusions were inaccurate. Thus blue paper in the yellow part of the spectrum appeared to Boyle green instead of black, but this was due to the admixture of green light with the yellow. He concluded that bodies appear black because they damp the light so as to reflect very little to the eye, but that the surfaces of white bodies consist of innumerable little facets which reflect the light in all directions. In the same year he published some "Observations on a Diamond, which shines in the Dark;" and an extensive treatise on "Some Considerations touching the Style of the Holy Scriptures." Next year appeared several papers from his pen, the most important being "Occasional Reflections upon Several Subjects," the wide scope of which may be gathered from the title. His "New Experiments and Observations touching Cold" were printed in 1665. In this paper he discussed the cause of the force exerted by water in freezing, methods of measuring degrees of cold, the action of freezing-mixtures, and many other questions. He contended that cold was probably only privative, and not a positive existence.

Lord Bacon had asserted that the "essential self" of heat was probably motion and nothing more, and had adduced several experiments and observations in support of this opinion. In his paper on the mechanical origin of heat and cold, Boyle maintained that heat was motion, but motion of the very small particles of bodies, very intense, and taking place in all directions; and that heat could be produced by any means whatever by which the particles of bodies could be agitated. On one occasion he caused two pieces of brass, one convex and the other concave, to be pressed against each other by a spring, and then rubbed together in a vacuum by a rotary motion communicated by a shaft which passed air-tight through the hole in the cover of the receiver, a little emery being inserted between them. In the second experiment the brasses became so hot that he "could not endure to hold [his] hand on either of them." This experiment was intended, like the rubbing of the blocks of ice in vacuo by Davy, to meet the objection that the heat developed by friction was due to the action of the air. The following extract from a paper intended to show that the sense of touch cannot be relied upon for the estimation of temperature, shows that Boyle possessed a very clear insight into the question: – "The account upon which we judge a body to be cold seems to be that we feel its particles less vehemently agitated than those of our fingers or other parts of the organ of touching; and, consequently, if the temper of that organ be changed, the object will appear more or less cold to us, though itself continue of one and the same temperature." To determine the expansion of water in freezing, he filled the bulb and part of the stem of a "bulb tube," or, as it was then generally called, "a philosophical egg," with water, and applying a freezing-mixture, at first to the bottom of the bulb, he succeeded in freezing the water without injury to the glass, and found that 82 volumes of water expanded to 91-1/8 volumes of ice – an expansion of about 11-1/8 per cent. Probably air-bubbles caused the ice to appear to have a greater volume than it really possessed, the true expansion being about nine per cent. of the volume of the water at 4 °C. The expansion of water in freezing he employed in order to compress air to a greater extent than he had been able otherwise to compress it. Having nearly filled a tube with water, but left a little air above, and then having sealed the top of the tube, he froze the water from the bottom upwards, so that in expanding it compressed the air to one-tenth of its former volume.

Magnetism and electricity came in for some share of Boyle's attention. He carried out a number of experiments on magnetic induction, and found that lodestones, as well as pieces of iron, when heated and allowed to cool, became magnetized by the induction of the earth. His later experiments with exhausted receivers were not made with his first pump, but with a two-barrelled pump, in which the pistons were connected by a cord passing over a large fixed pulley, so that, when the receiver was nearly exhausted, the pressure of the air on the descending piston during the greater part of the stroke nearly balanced that on the ascending piston. In this respect the pump differed only from Hawksbee's in having the pulley and cord instead of the pinion and two racks. It also resembled Hawksbee's pump in having self-closing valves in the pistons and at the bottom of the cylinders, which, in this pump, had their open ends at the top. The pistons were alternately raised and lowered by the feet of the operator, which were placed in stirrups, of which one was fixed on each piston. The lower portions of the barrels were filled with water, through which the air bubbled, and this, occupying the clearance, enabled a much higher degree of exhaustion to be produced than could be obtained without its employment.

In 1665 Boyle was nominated Provost of Eton, but declined to accept the appointment. His "Hydrostatical Paradoxes," published about this time, contain all the ordinary theorems respecting the pressure of fluids under the action of gravity demonstrated experimentally.

In 1677 Boyle printed, at his own expense, five hundred copies of the four Gospels and the Acts of the Apostles in the Malayan tongue. This was but one of his many contributions towards similar objects.

On November 30, 1680, the Royal Society chose Boyle for President. He, however, declined to accept the appointment, because he had conscientious objections to taking the oath required of the President by the charter of the Society.

It appears that very many of Boyle's manuscripts, which were written in bound books, were taken away, and others mutilated by "corrosive liquors." In May, 1688, he made this known to his friends, but, though these losses put him on his guard, he complained afterwards that all his care and circumspection had not prevented the loss of "six centuries of matters of fact in one parcel," besides many other smaller papers. His works, however, which have been published are so numerous that it would take several pages for the bare enumeration of their titles, many of them being devoted to medical subjects. The edition published in London in 1743 comprises nearly three thousand pages of folio. Boyle always suffered from weak eyes, and in consequence he declined to revise his proofs. In the advertisement to the original edition of his works the publisher mentioned this, and at the same time pleaded his own business engagements as an excuse for not revising the proofs himself! It was partly on account of the injury to his manuscripts, and partly through failing health, that in 1689 he set apart two days in the week, during which he declined to receive visitors, that he might devote himself to his work, and especially to the reparation of the injured writings. About this time he succeeded in procuring the repeal of an Act passed in the fifth year of Henry IV. to the effect "that none from thenceforth should use to multiply gold or silver, or use the craft of multiplication; and if any the same do, they should incur the pain of felony." By this repeal it was made legal to extract gold and silver from ores, or from their mixtures with other metals, in this country provided that the gold and silver so procured should be put to no other use than "the increase of moneys." It is curious that Boyle seems always to have believed in the possibility of transmuting other metals into gold.
